tp-link tapo c100
the tapo c100 is a cheap IP camera - simply said a piece of shit. let's call it out to be garbage - it is the bad example of an IoT device.
but first things first...
hardware
the device itself exists in different variants. here we're talking about the (EU)/5.0.

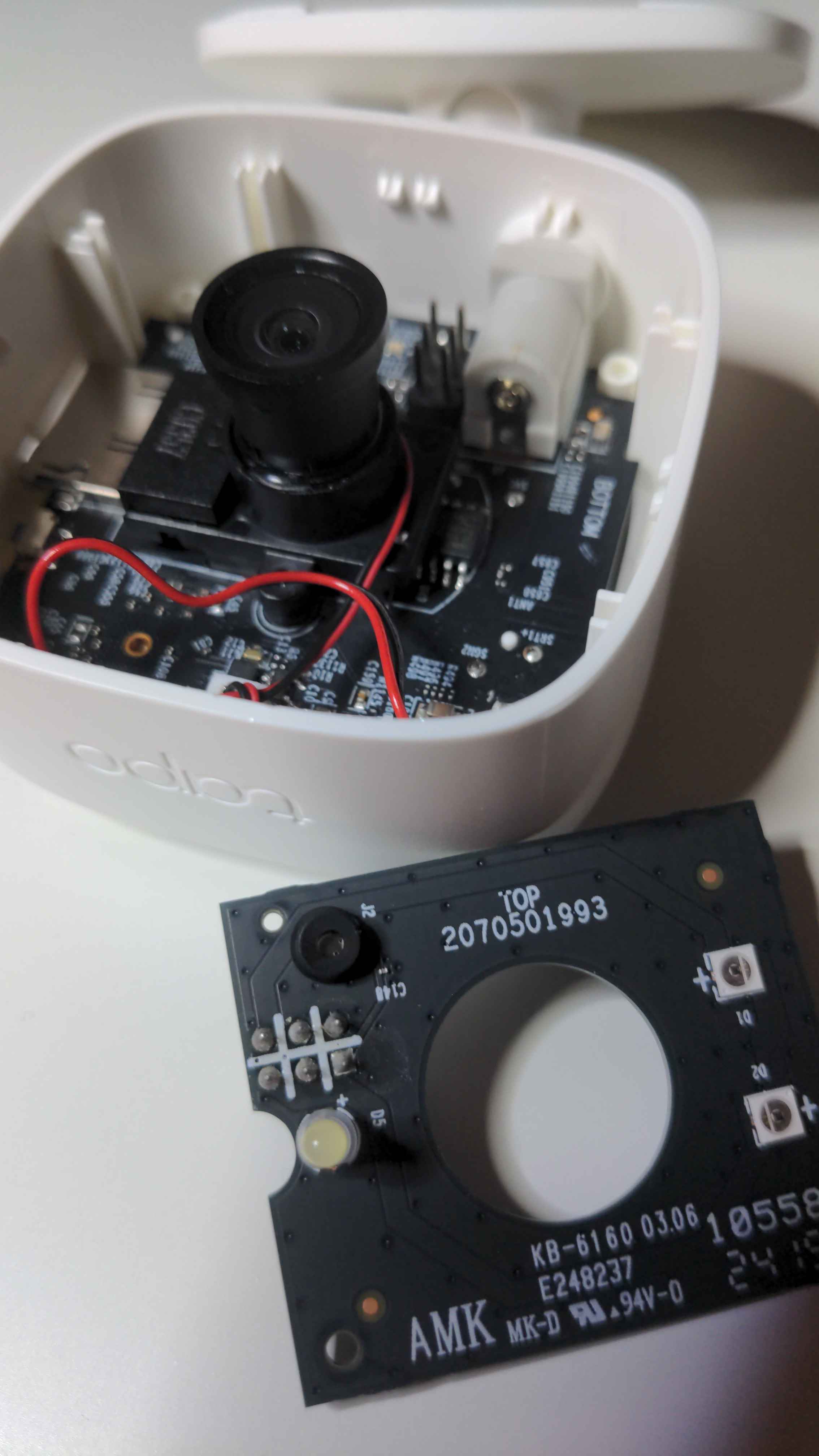

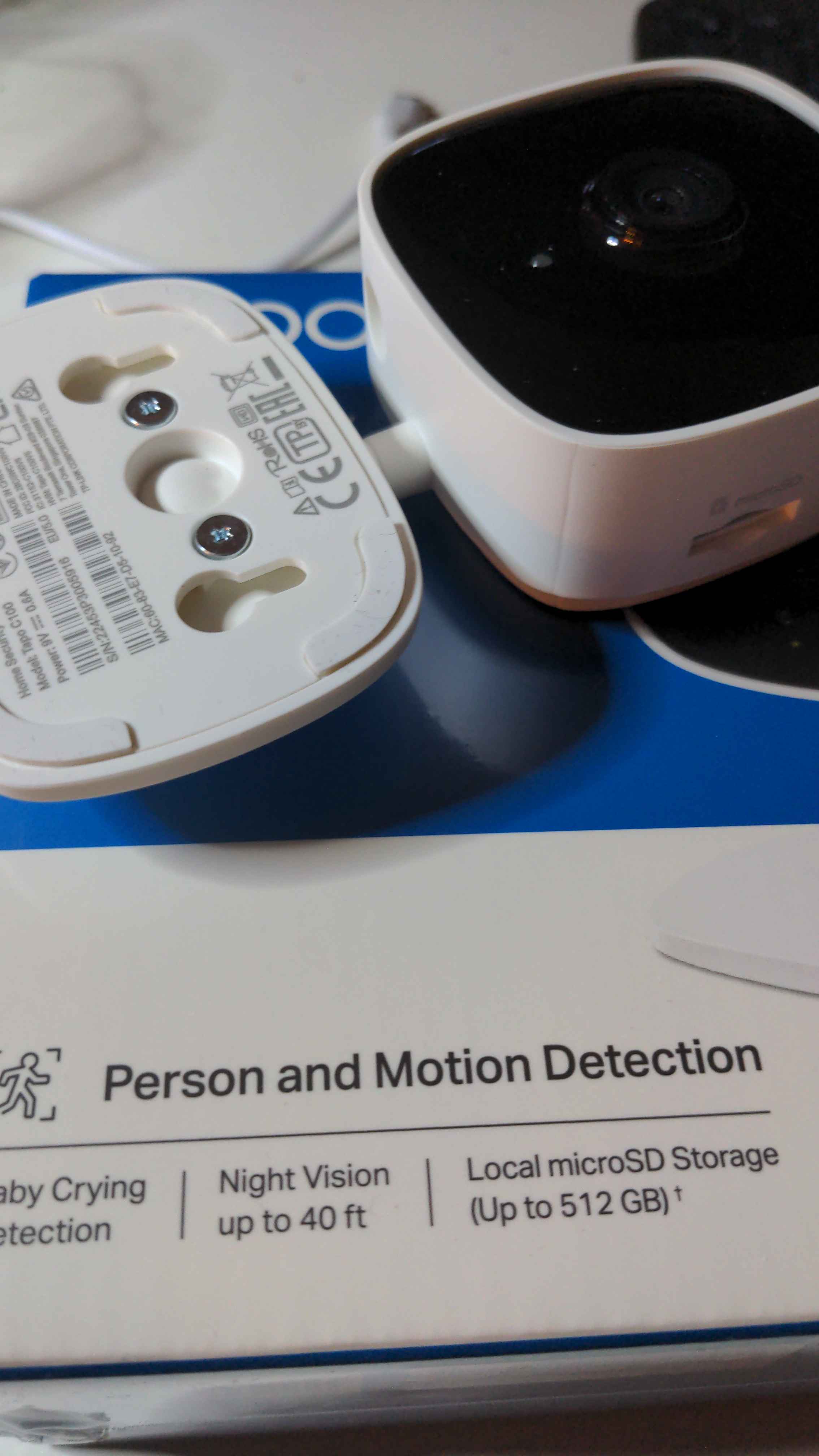

the variant is printed onto the box. close to a barcode and printed on a sticker at the pcb.

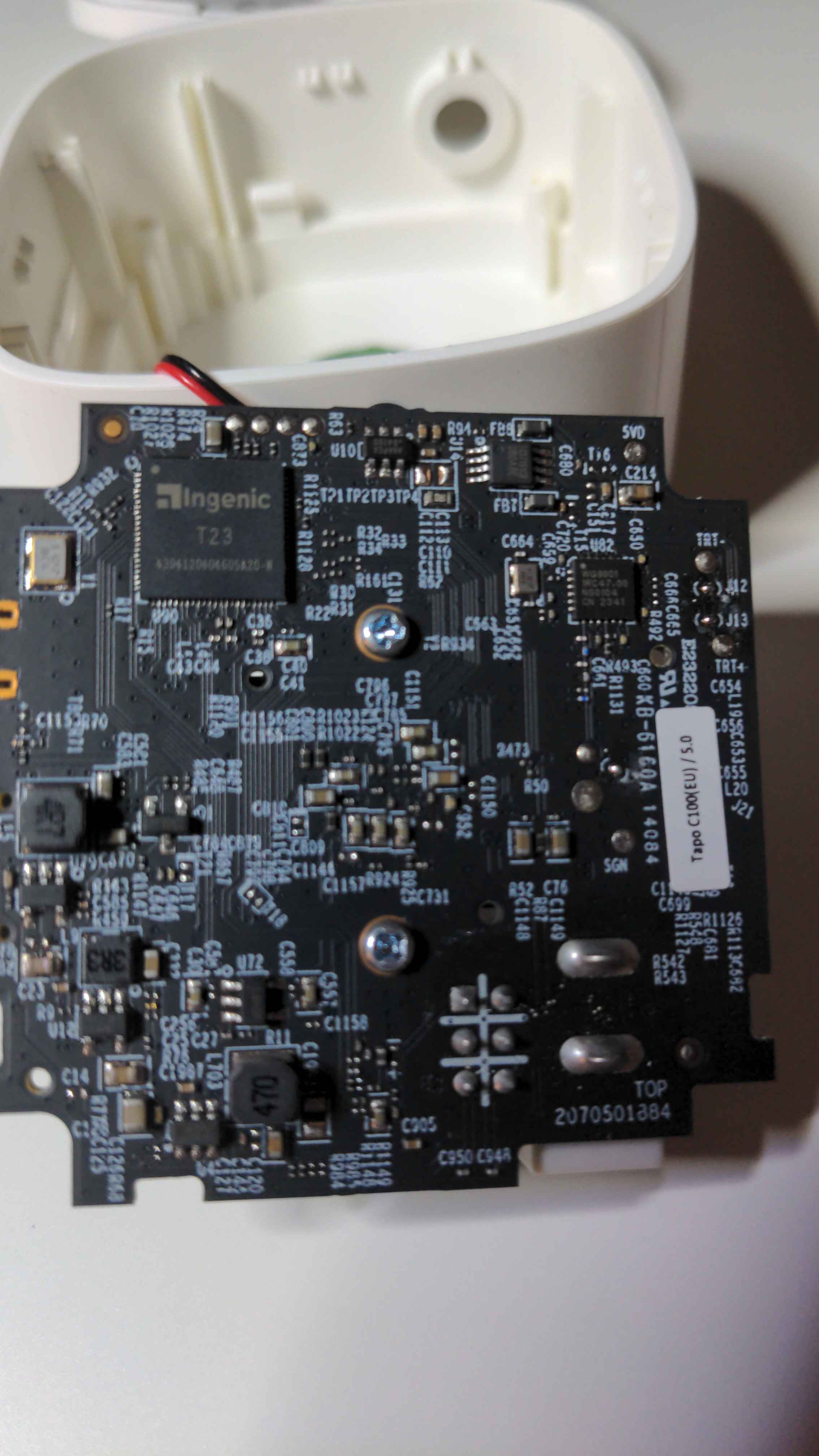

Ingenic T23
the Ingenic T23 XBurst-1 is a CPU with 1.2-1.4 GHz and a H.264 encoder.
WQ9001
the WQ9001 is a SoC with 2.4 GHz 802.11a/b/g/n wifi and a USB2.0 interface.
seems to be a RISC-V architecture.

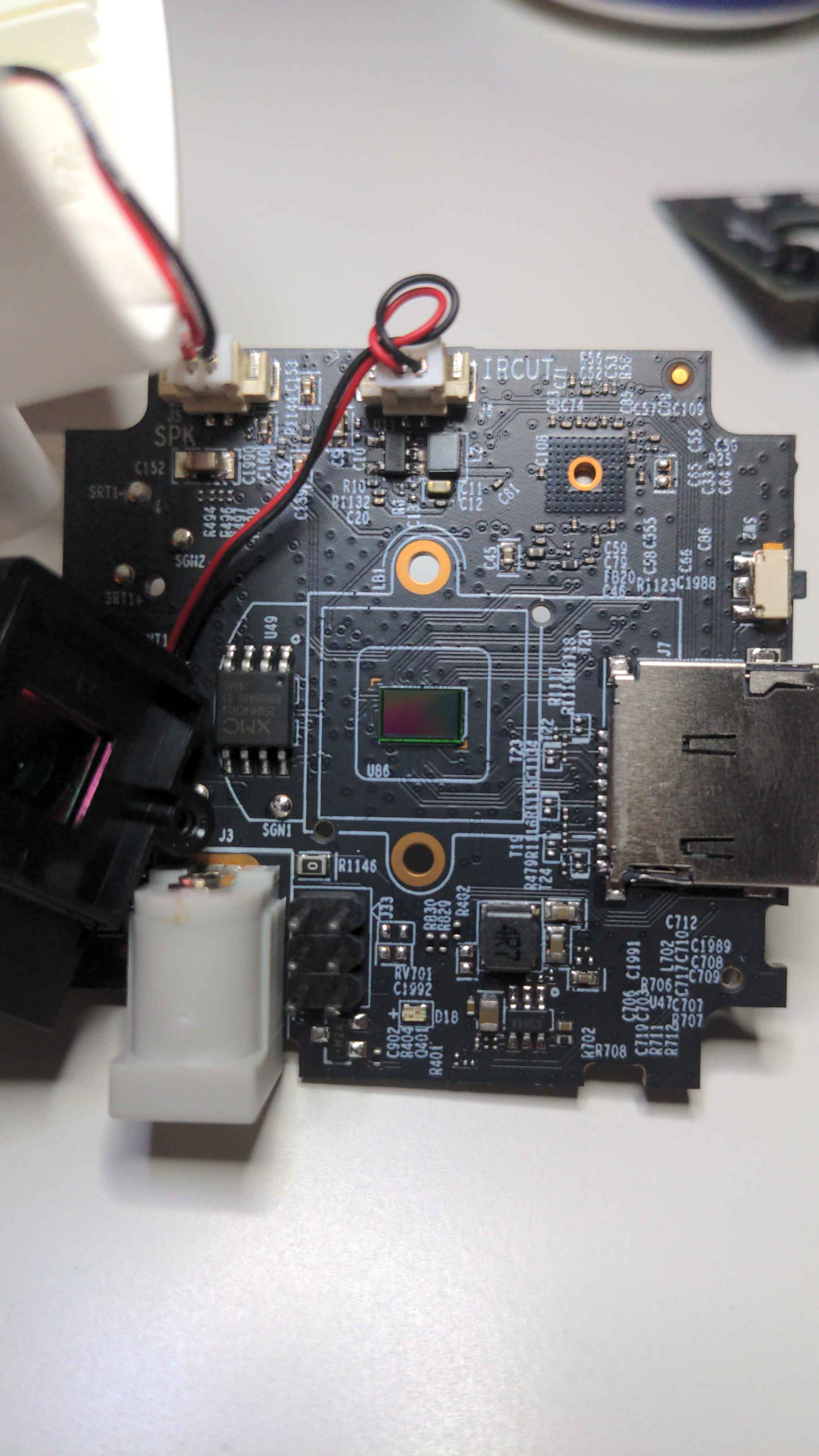

SPI flash
the XMC 25QH64C is a dual/quad SPI flash (64M).
there are many deviations out there. not sure if a change raises a hw rev bump. I guess not since they all seem to be pin compatible.
UART / serial console

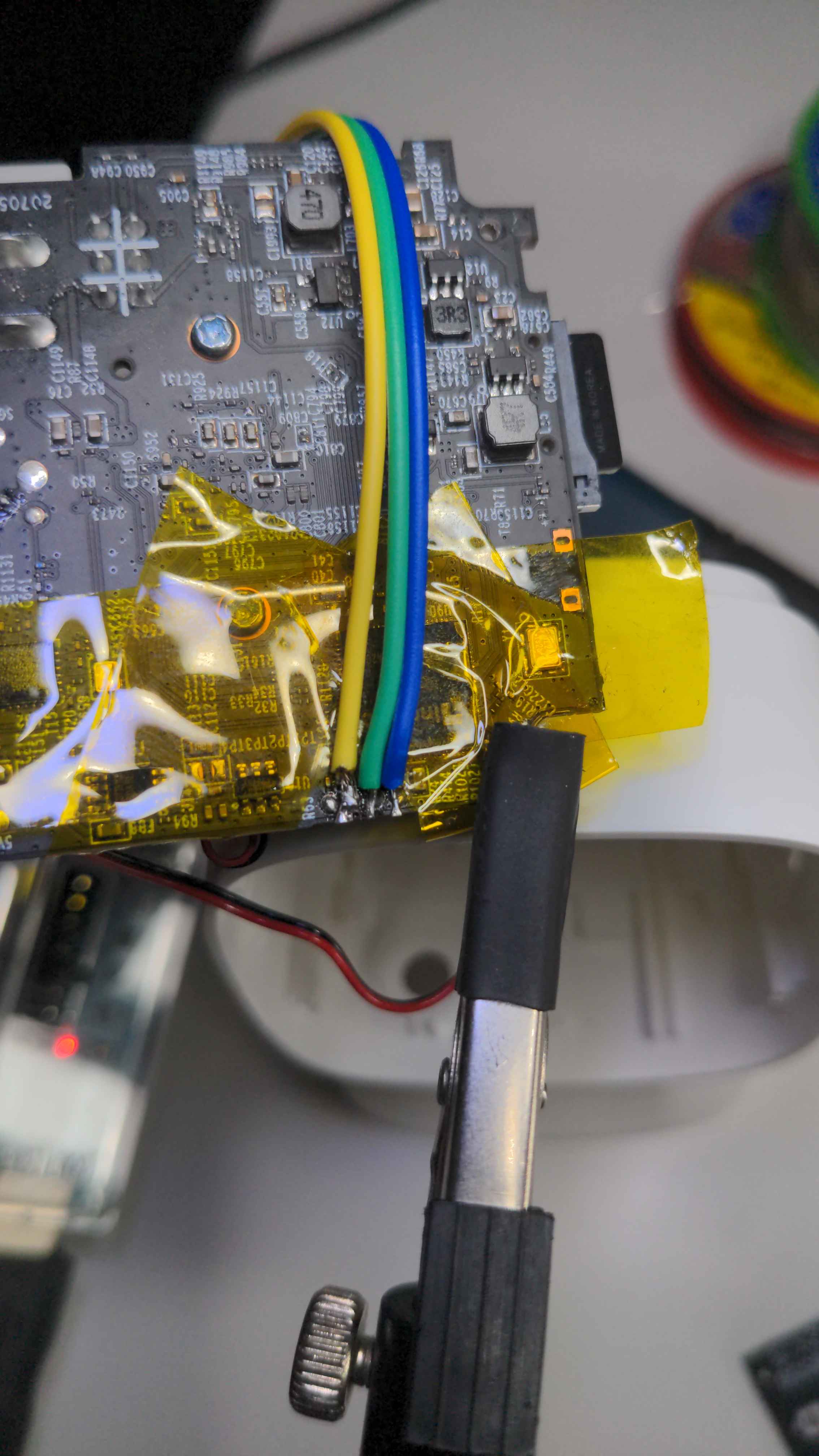

there are 4 remarkable pins in a row close to the T23 chip (at the edge of the pcb).
- VCC (never tested, should be at 3.3V)
- GND -> yellow cable
- RX -> green cable
- TX -> blue cable (oscilator shows typical bootup pattern)
do not connect Vcc and make sure your serial adaptor is set to 3.3V. baudrate is as usual nowadays 115200.
software
let's boot the device and see what's going on. they shipped a sheet of paper with GPL notes so I expect to see u-boot.
we could check the OSS archive they have to provide but let's postpone the paperwork.
first boot and yepp, u-boot shows up :)
bootloader (u-boot)
U-Boot SPL 2013.07 (Mar 28 2024 - 20:03:13)
Board info: T23N
apll_freq = 1200000000
mpll_freq = 1176000000
sdram init start
DDR clk rate 588000000
DDR_PAR of eFuse: 00000000 00000000
sdram init finished
image entry point: 0x80100000
wtf SPL from 2013? how old is this camera? I'd expected to see one from maybe 2018 but ok. it is a factory bootloader, so fine.
U-Boot 2013.07 (Mar 28 2024 - 20:03:13)
Board: ISVP (Ingenic XBurst T23 SoC)
DRAM: 64 MiB
Top of RAM usable for U-Boot at: 84000000
Reserving 424k for U-Boot at: 83f94000
Reserving 32784k for malloc() at: 81f90000
Reserving 32 Bytes for Board Info at: 81f8ffe0
Reserving 124 Bytes for Global Data at: 81f8ff64
Reserving 128k for boot params() at: 81f6ff64
Stack Pointer at: 81f6ff48
Now running in RAM - U-Boot at: 83f94000
MMC: msc: 0
the manufacturer 20
SF: Detected XM25QH64C
*** Warning - bad CRC, using default environment
In: serial
Out: serial
Err: serial
gpio_request lable = ir_cut gpio = 57
Net: No ethernet found.
Autobooting in 1 seconds
Firmware check pass!
cmd_buf = sf probe;sf read 0x80600000 0x50000 0x20000
the manufacturer 20
SF: Detected XM25QH64C
--->probe spend 4 ms
SF: 131072 bytes @ 0x50000 Read: OK
--->read spend 47 ms
ret = 0, dst_len = 167000
cmd_buf = go 0x820a0000
## Starting application at 0x820A0000 ...
Flush cache all before jump.
eh wait. the bootloader was compiled in 2024? wow!
U-Boot 2013.07 (Mar 28 2024 - 20:02:28)
Board: ISVP (Ingenic XBurst T23 SoC)
DRAM: 64 MiB
Top of RAM usable for U-Boot at: 84000000
Reserving 186k for U-Boot at: 83fd0000
Reserving 32784k for malloc() at: 81fcc000
Reserving 32 Bytes for Board Info at: 81fcbfe0
Reserving 124 Bytes for Global Data at: 81fcbf64
Reserving 128k for boot params() at: 81fabf64
Stack Pointer at: 81fabf48
Now running in RAM - U-Boot at: 83fd0000
MMC: msc: 0
the manufacturer 20
SF: Detected XM25QH64C
*** Warning - bad CRC, using default environment
In: serial
Out: serial
Err: serial
gpio_request lable = ir_cut gpio = 57
VF: validateFirmwareWithRecover: copying flash to 0x22000000
the manufacturer 20
SF: Detected XM25QH64C
--->probe spend 5 ms
SF: 8388608 bytes @ 0x0 Read: OK
--->read spend 2742 ms
VF: validateFirmwareWithRecover: ret=0(81fabe38)
VF: validateFirmwareWithRecover: validate local firmware...
TP Header at 22070000
set bootargs to earlyprintk console=ttyS1,115200n8 mem=42M@0x0 rmem=22M@0x2a00000 rootwait nprofile_irq_duration=on rootfstype=squashfs ro mtdparts=spi_nor.0 root=/dev/mtdblock6 rw spdev=/dev/mtdblock7 noinitrd i
nit=/etc/preinit
the manufacturer 20
SF: Detected XM25QH64C
--->probe spend 4 ms
SF: 2097152 bytes @ 0x70200 Read: OK
--->read spend 689 ms
## Booting kernel from Legacy Image at 80600000 ...
Image Name: mips Ingenic Linux-3.10.14
Image Type: MIPS Linux Kernel Image (lzma compressed)
Data Size: 1298460 Bytes = 1.2 MiB
Load Address: 80010000
Entry Point: 8031e330
Verifying Checksum ... OK
Uncompressing Kernel Image ... OK
Starting kernel ...
why do they load u-boot twice?
kernel (linux)
[ 0.000000] Linux version 3.10.14 (root@smartlifeci1) (gcc version 5.4.0 (Ingenic Ingenic r3.3.0-gcc540 Smaller Size 2023.05-22) ) #1 PREEMPT Thu Mar 28 20:06:46 CST 2024
I miss the right words to justify this. what the hell... even the kernel is fucking old. but still compiled in 2024. seriously here the fun ends. this is a camera device with integrated microphone. tapo is advertising it as baby phone. thounsands of parents installing this in their bedrooms. I am afraid to expect that all ingenic based cameras are as worse as this...
vendor firmware updates
the oem firmware mounts a sdcard if attached and tries to load
a file factory_up_boot.bin.
don't know yet what the sys00.bin might be.
[2024-03-28 12:07:04] [ERROR] stm_add_disk():6718 - [STM]access sys00.bin fail!
[2024-03-28 12:07:04] is_firmware_exist():6664 - [STM]no firmware[/tmp/sdcard/factory_up_boot.bin] in sd_card,([2] No such file or directory)
unfortunatelly I wrote the thingino fw to this location and booted the device to see if a easy to use migration exists. turned out. nope...
[2024-03-28 20:07:48] [ERROR] fw_file_upgrade():2153 - [UPGRADE]file size: 8388608
[2024-03-28 20:07:48] [ERROR] check_firmware():1423 - [UPGRADE]Wrong Upgrade Firmware.
[2024-03-28 20:07:48] [ERROR] fw_file_upgrade():2165 - [UPGRADE]firmware_upgrade add idleworker failed
[2024-03-28 20:07:48] [ERROR] fw_upgrade_ready_cb():2266 - [UPGRADE]firmware upgrade fail and firmware not changed
[2024-03-28 20:07:48] ntp_time_update_cb():620 - [SYSTEM]System time is calibrated by SD card.
[2024-03-28 20:07:48] [ERROR] led_rule_call_handle():112 - [LEDRULE]receive led_state: [12]
[2024-03-28 20:07:48] [ERROR] sd_upgrade_res_cb():213 - [UPGRADE]sd_upgrade_res_cb, type: 0, id: 359289953
[2024-03-28 20:07:48] [ERROR] sd_upgrade_res_cb():251 -[UPGRADE]sd firmware upgrade fail, sleep... Please Reboot!
unfortunatelly this seems to brick your device. so I need to find a new way to free this device. as of now I need to find a way to factory reset it but there are no official firmware blobs available. do they hide them behind a weird OTA backend?. I am pretty sure they do.
